SC80
20,000 - 80,000 Btu/hThe smallest burner in Wayneâs line-up, the SC80 gas power burner is designed for small combustion chambers.
Available as ON/OFF or modulating, the SC80 features high static air pressure to compensate for the size of the combustion chamber, positive premixing of air and gas, as well direct spark ignition.
All SC80 flame retention gas burners are completely assembled and test fired before shipment. 304 stainless air tubes standard.
Quickly locate an authorized Wayne distributor near you.

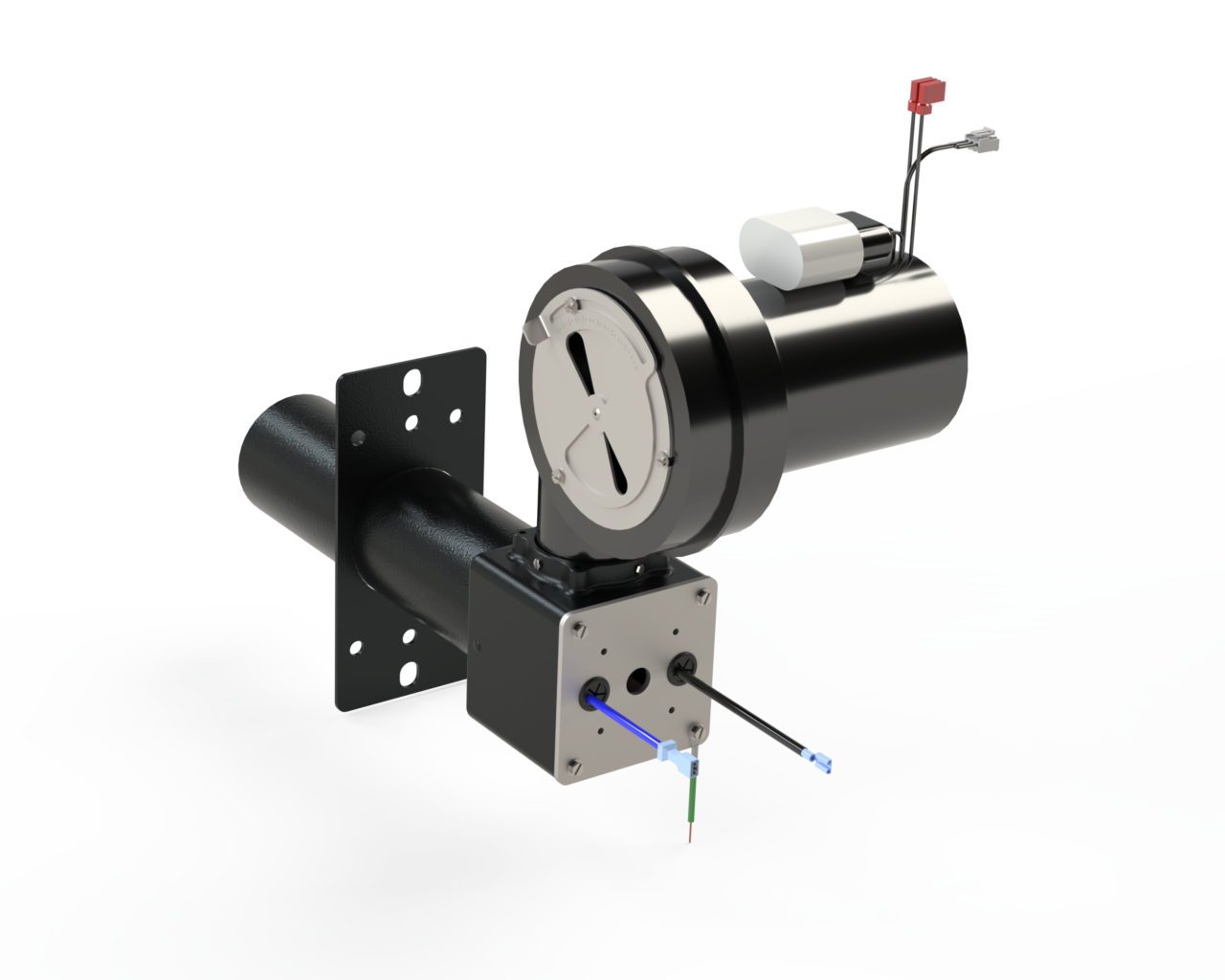

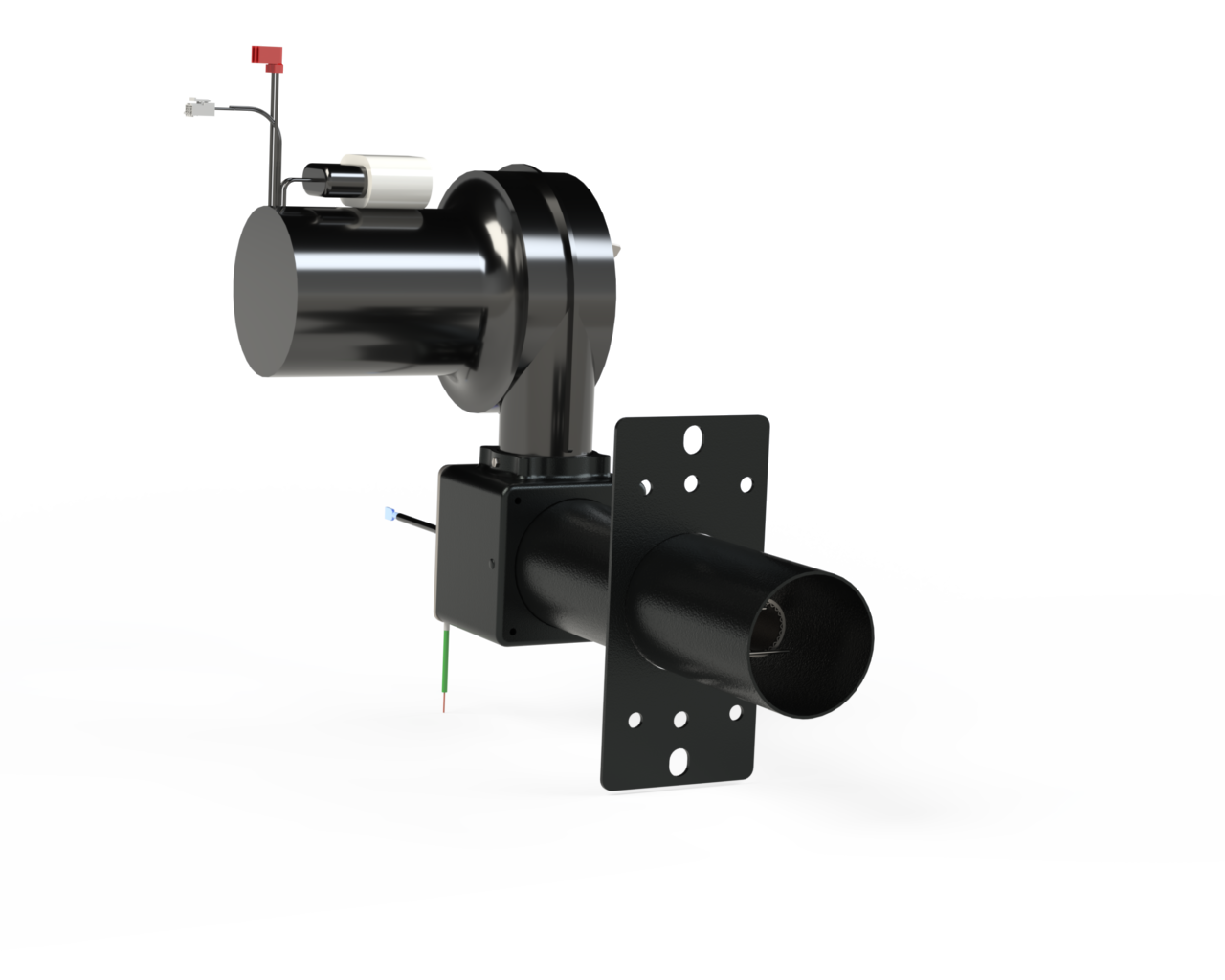

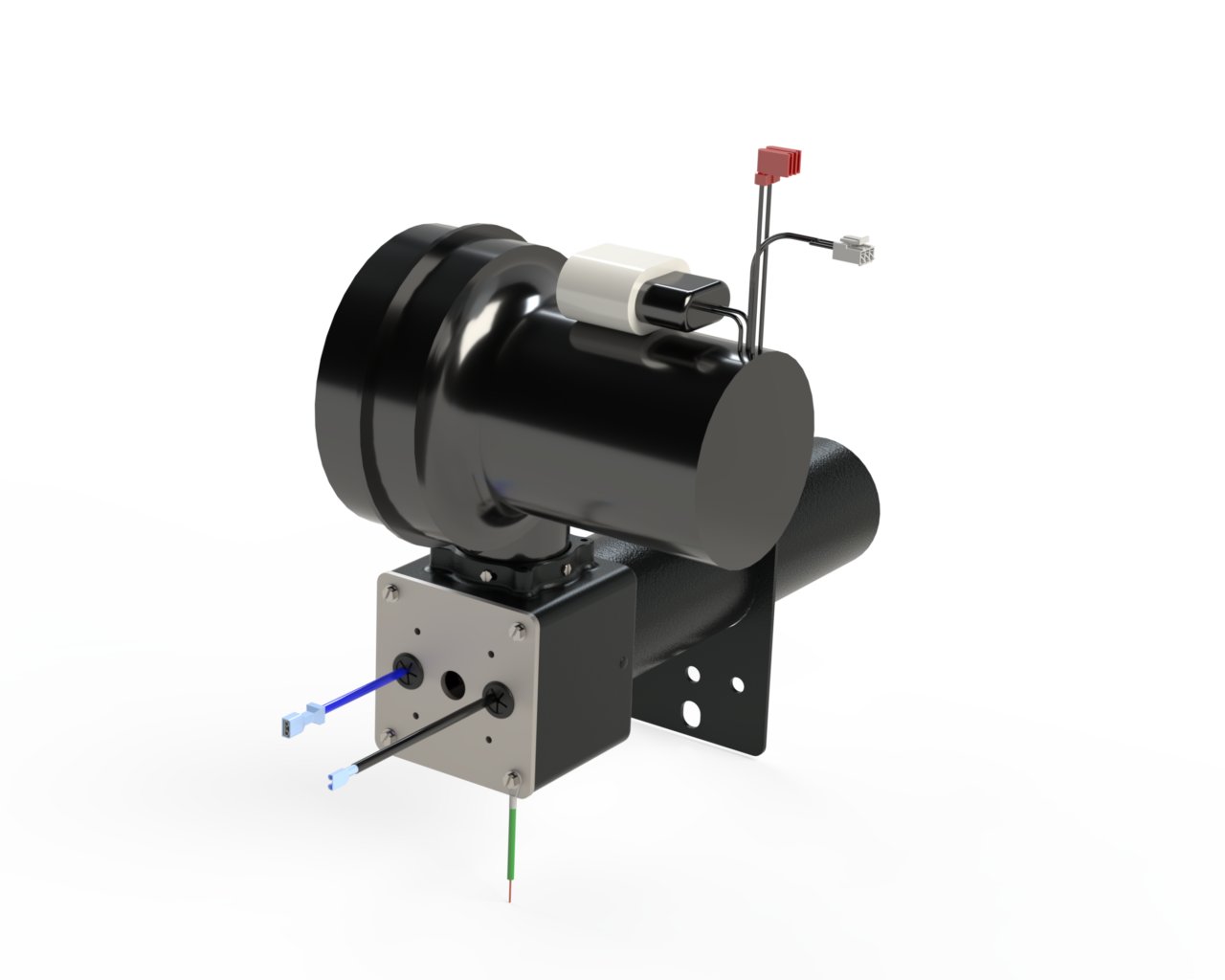

The Wayne Model SC80 pre-mix power gas burner is compact and designed for small combustion chambers. It offers features such as:
Â
- Direct spark ignition
- Fires both Natural and LP Gas
- Two rod, single trial for ignition control
- Positive premixing of gas and air to provide excellent combustion characteristics
- Mounting options for controls â remote mounted or attached to the burner
| Name | Value |
|---|---|
| BTU | 20,000 - 80,000 Btu/hr |
| Agency Approvals | CSA 189810-1601609 |
| Air Tube Diameter(s) | 3" |
| Electrical (Voltage) | 120V |
| Electrical (Hertz) | 60 Hz |
| Gas Inlet Connection | 1/2'' NPT or 3/4'' NPT |
| Gas Pressure Required | Natural Gas - 41â2'' W.C. LP gas 11.0â W.C. |
| Gas Valve | 24 Volt |
| Maximum Air Tube Insertion | Adjustable flange 4", Welded flange 4.75" |
| Maximum BTU/Hr Input | 80,000 Btu/hr |
| Minimum BTU/Hr Input | 20,000 Btu/hr |
| Modulation Option Available | No |
| Overall Height | 11.42" |
| Overall Width | 12.18" |
| Overall Length | 6.39" |
