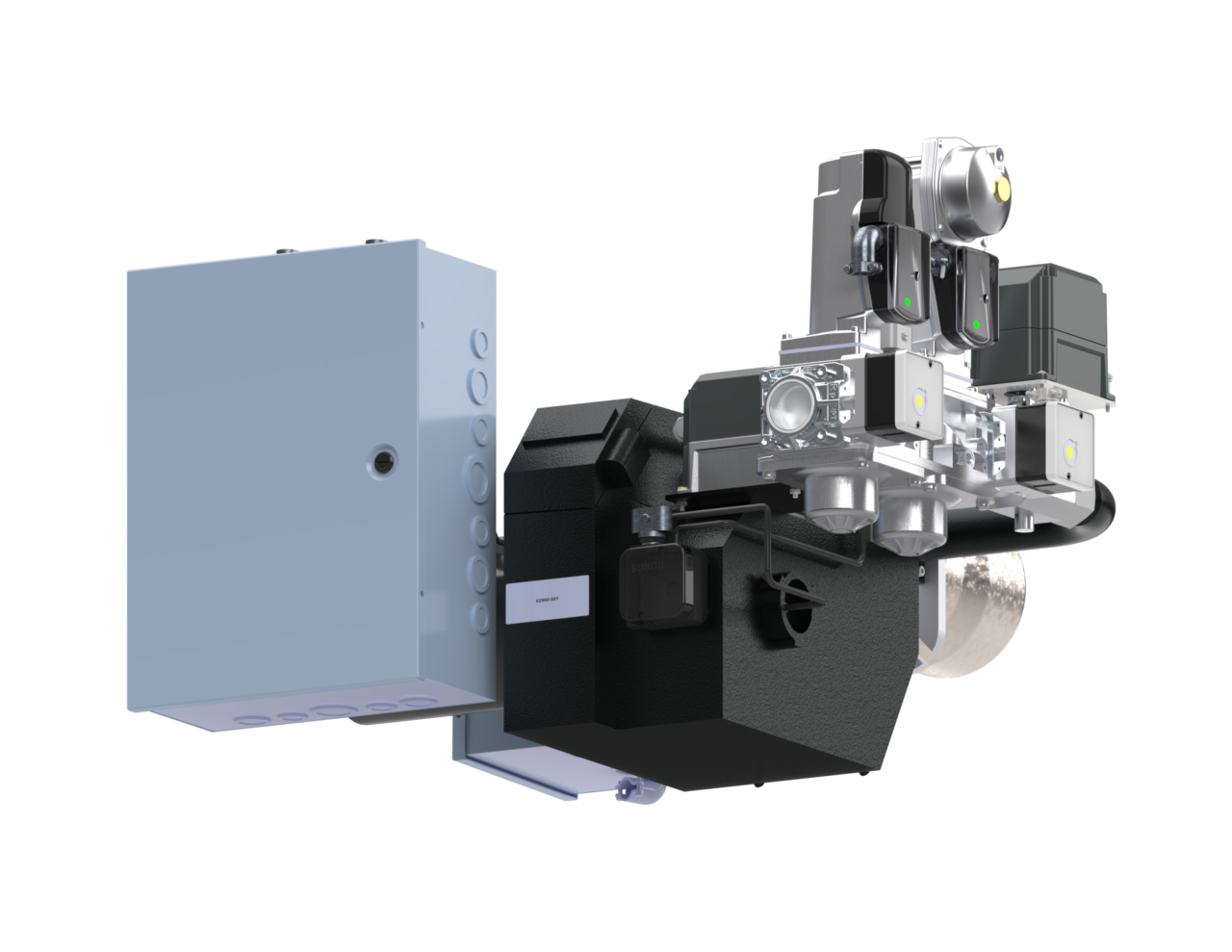

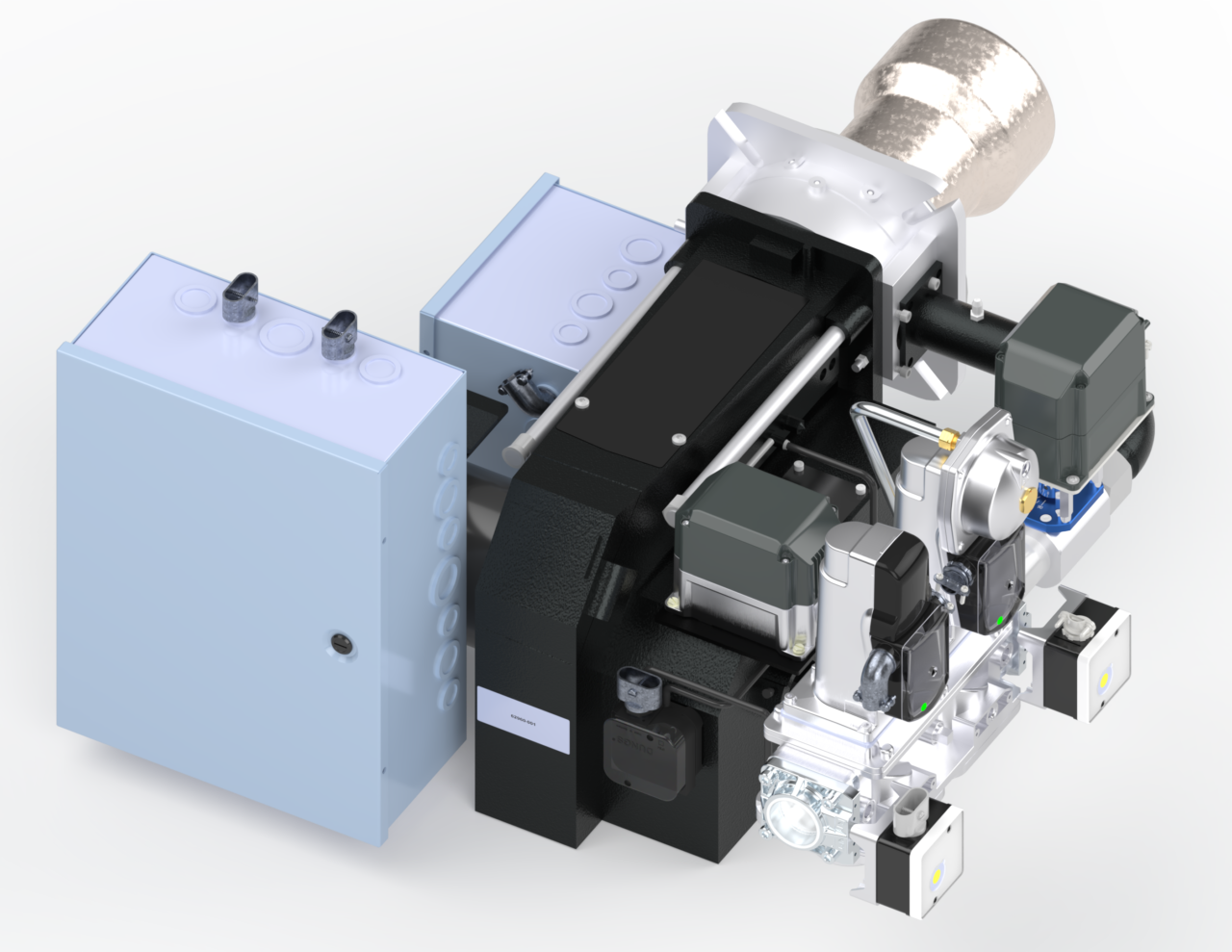

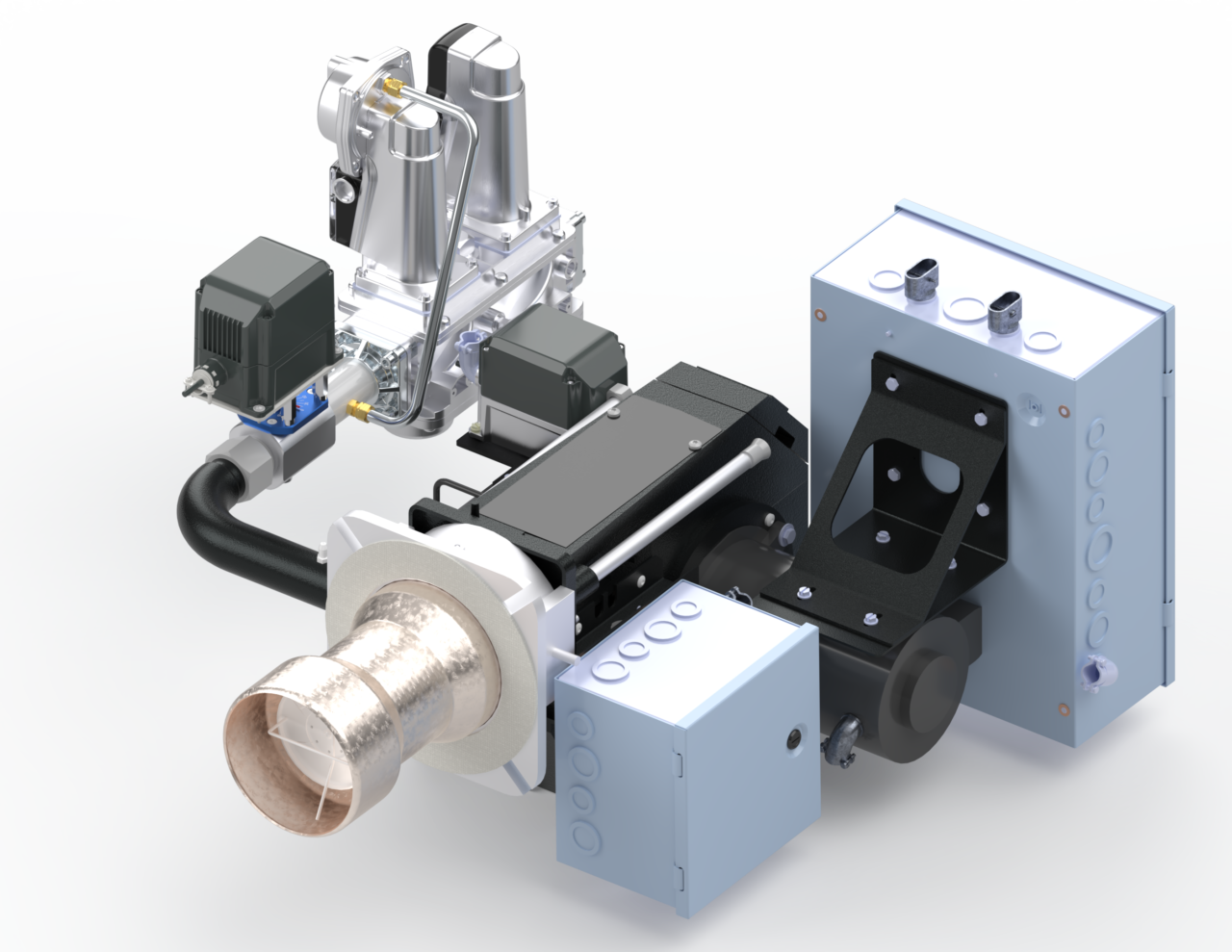

LC2300M
0.7 - 2.3 million Btu/h ModulatingFull Modulation with Integrated Controls, Valves, and Gas Train
Firing Rate 70,000 BTU/hr to 2.3MM BTU/hr for 30:1 Turndown
Linkageless Control System Modulates Both Gas and Air Flows
Slide Rail Construction for Easy Serviceability
Control System Readily Available
Pre-Programmed Firing Rate Curve
Control Display Can Be Remotely Mounted
Application Support Available
Applications:
Commercial Boilers
Commercial Roasters and Ovens
Industrial Ovens
Incinerators
Make-Up Air Units
Process Heating
Water Heaters
Quickly locate an authorized Wayne distributor near you.
Full Modulation with Integrated Controls, Valves, and Gas Train
Firing Rate 70,000 BTU/hr to 2.3MM BTU/hr for 30:1 Turndown
Linkageless Control System Modulates Both Gas and Air Flows
Slide Rail Construction for Easy Serviceability
Control System Readily Available
Pre-Programmed Firing Rate Curve
Control Display Can Be Remotely Mounted
Application Support Available
| Name | Value |
|---|---|
| BTU | 70,000 - 2,300,000 |
| Agency Approvals | cUL Pending |
| Air Tube Length(s) | 9" |
| Air Tube Diameter(s) | 6.25" |
| Combustion Head | Nozzle mix, high retention |
| Controls | Parallel Positioning Gas and Air Modulation |
| Electrical (Voltage) | 120V |
| Electrical (Hertz) | 60 Hz |
| Fan Housing | Cast Aluminum |
| Firing Range | 70,000-2,300,000 Modulating |
| Fuel | Natural Gas or LP |
| Maximum BTU/Hr Input | 0 Btu/hr |
| Minimum BTU/Hr Input | 0 Btu/hr |
| Modulation Option Available | Yes |
| Motor | 1/4HP, 3450RPM, 115/208-230V, 60HZ |
| Mounting | Cast aluminum flange |
| Gas Train | Included w/Modulating Parallel Positioning Controls and Valves |
| Overall Height | 21.1" |
| Overall Width | 35.6" |
| Overall Length | 34.0" |
