LC2300

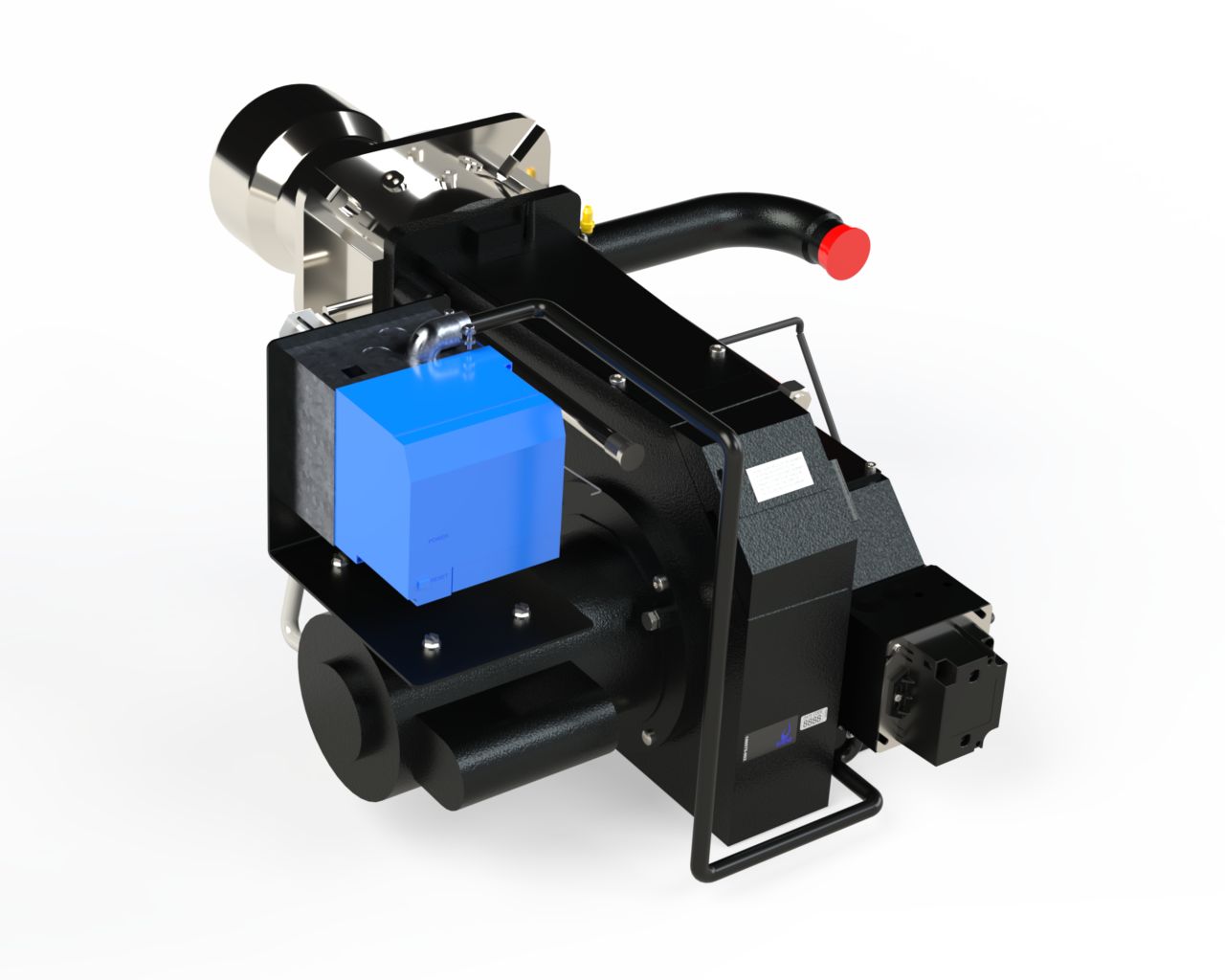

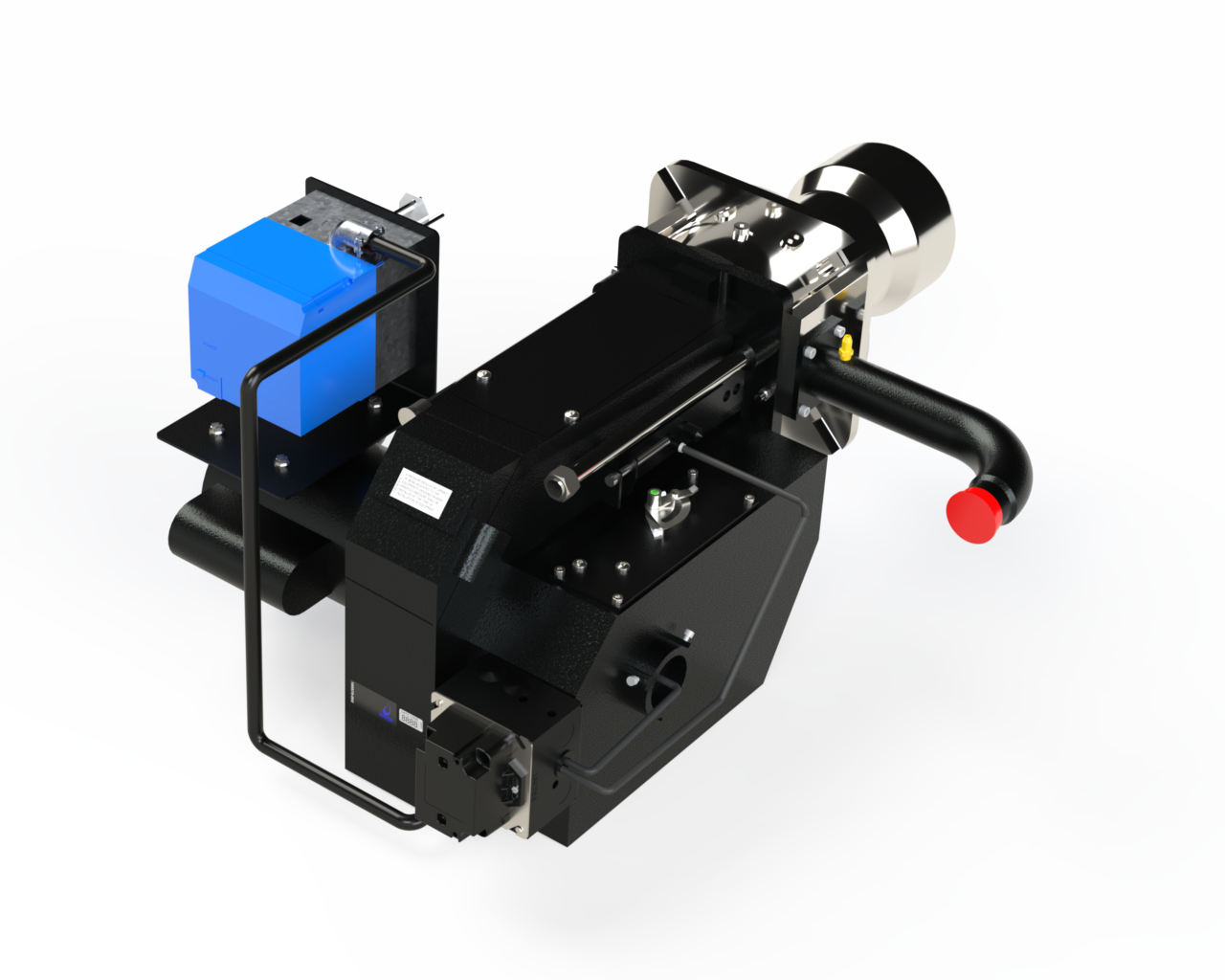

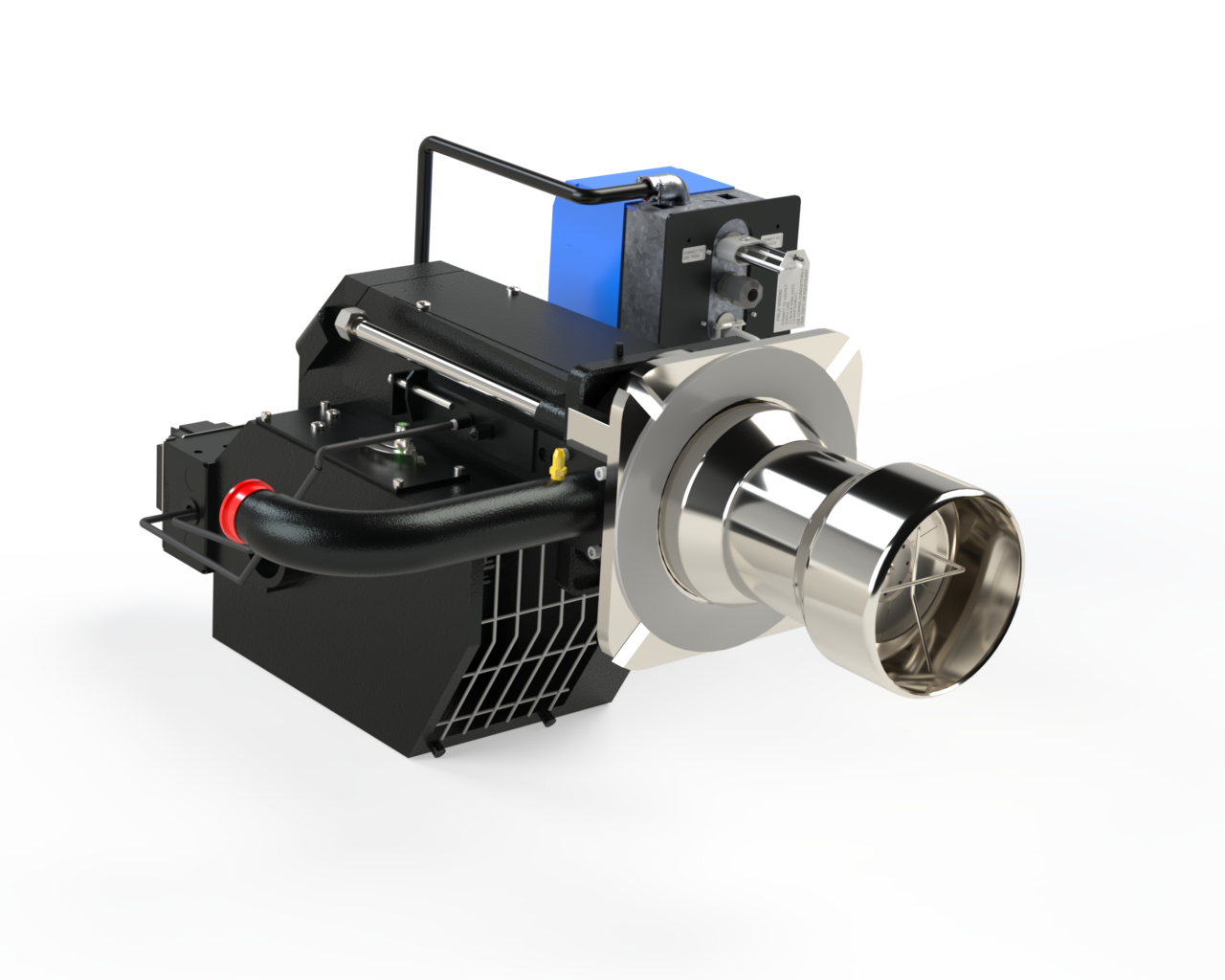

1.1 - 2.3 million Btu/hOften better known as the Wayne Nighthawk burner, the LC-2300 power gas burner is built for heavy commercial and light industrial use, firing up to 2.3 million Btu/hr.
Suited perfectly for high static pressure situations, the LC-2300 converts easily from natural gas to LP. With an adjustable head, flames can be customized for best results in any application.
Quickly locate an authorized Wayne distributor near you.
Known as the Wayne Nighthawk burner, the LC2300 power gas burner is built for heavy commercial and light industrial use, firing up to 2.3 million Btu/hr with On/Off Capability.
Suited perfectly for high static pressure situations, the LC2300 converts easily from natural gas to LP. With an adjustable head, flames can be customized for best results in any application.
The entire firing range of the LC2300 can be obtained without changing the orifice.
| Name | Value |
|---|---|
| BTU | 1,100,000 - 2,300,000 Btu/hr. |
| Agency Approvals | CSD-1 |
| Air Tube Length(s) | 9" |
| Air Tube Diameter(s) | 6.25" |
| Combustion Head | Nozzle mix, high retention |
| Controls | Flamerod sensor with 4-second trial for ignition |
| Electrical (Voltage) | 120V |
| Fan Housing | Diecast aluminum alloy |
| Firing Range | 1,100,000 - 2,300,000 Btu/hr. |
| Fuel | Natural Gas or LP |
| Ignition | Direct Spark 6,000 V ignition source |
| Maximum Air Tube Insertion | 8" |
| Maximum BTU/Hr Input | 0 Btu/hr |
| Minimum BTU/Hr Input | 0 Btu/hr |
| Modulation Option Available | No |
| Motor | 0.75 HP, 3450 RPM, 115 / 208-230, 60HZ |
| Mounting | Cast aluminum flange included |
| Gas Train | 1.5" or 2", with CSD-1 & UL795 components |
| Overall Height | 14.60" |
| Overall Width | 28.10" |
| Overall Length | 33.08" |
| Shipping Weight | 85 lbs. |
