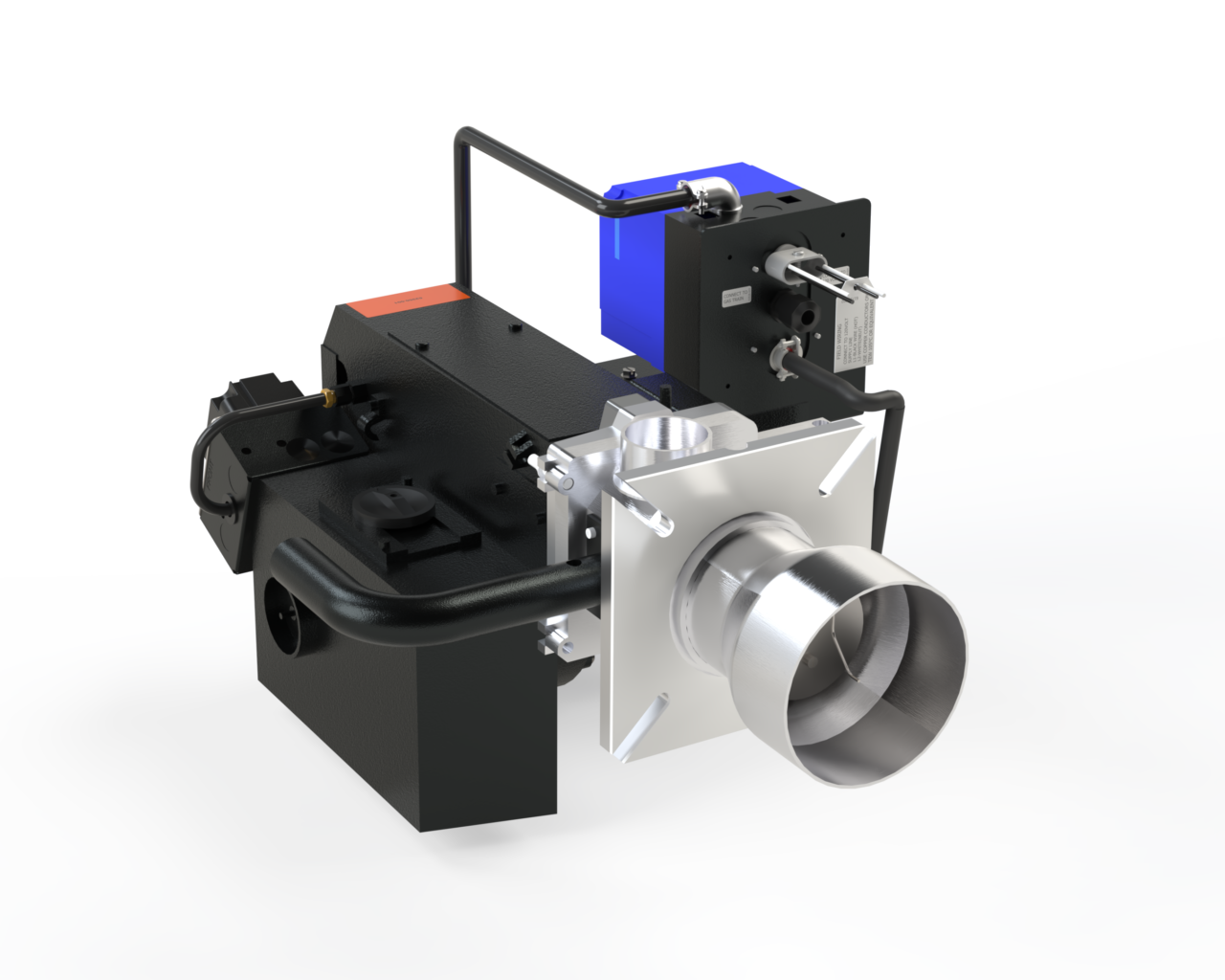

LC1500 Tertiary
LC1500 Primary

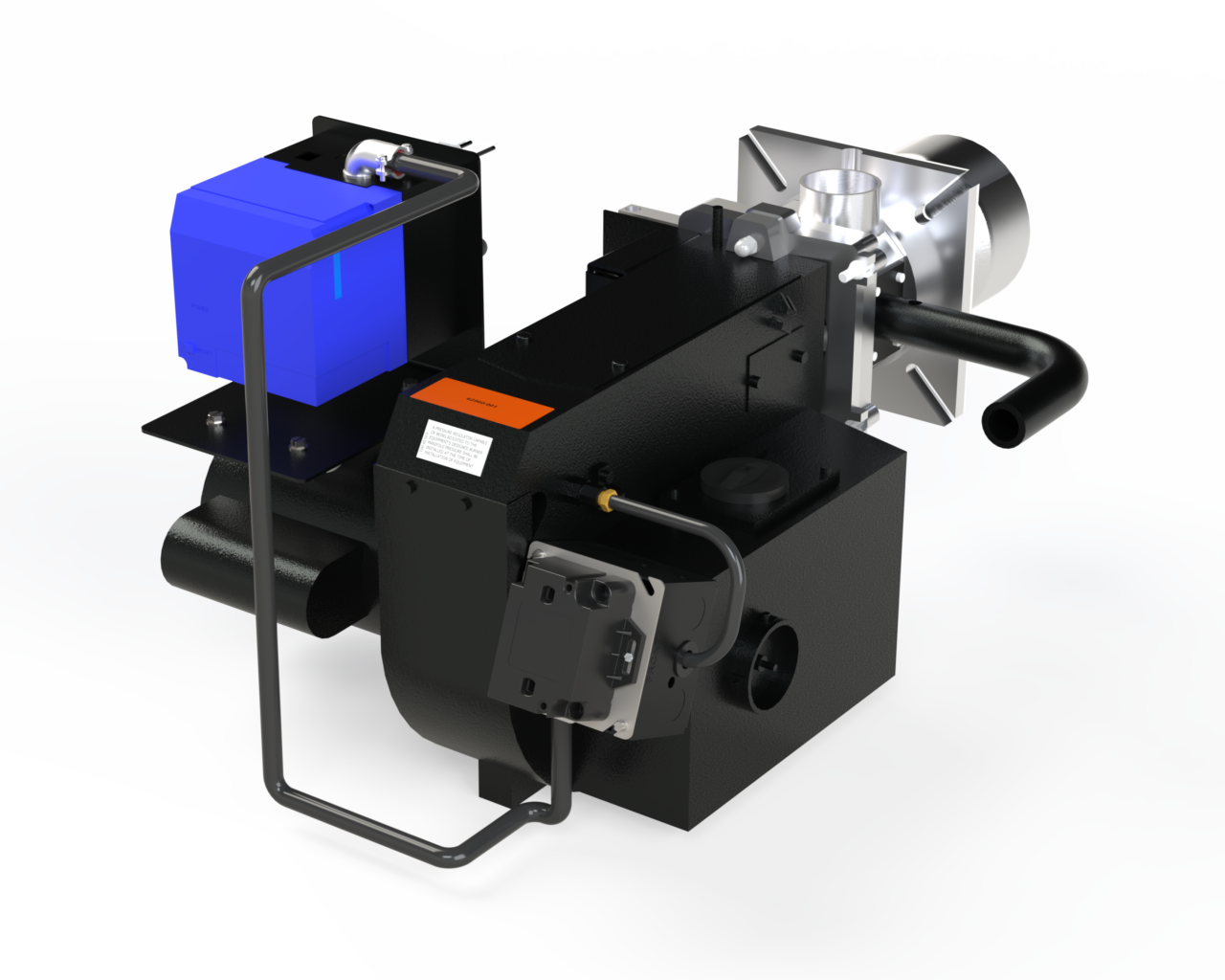

LC1500 Secondary
  • LC1500 Tertiary
  • LC1500 Primary
  • LC1500 Secondary
1 / 3

LC1500

0.7 - 1.5 million Btu/h

Often better known as the Wayne Nighthawk burner, the LC 1500 power gas burner is built for heavy commercial and light industrial use, firing up to 1.5 million Btu/hr.

Suited perfectly for high static pressure situations, the LC-1500 converts easily from natural gas to LP. With an adjustable head, flames can be customized for best results in any application.

Quickly locate an authorized Wayne distributor near you.

Often better known as the Wayne Nighthawk burner, the LC 1500 power gas burner is built for heavy commercial and light industrial use, firing up to 1.5 million Btu/hr.

Suited perfectly for high static pressure situations, the LC-1500 converts easily from natural gas to LP.  With an adjustable head, flames can be customized for best results in any application.

The entire firing range of the LC-1500 can be obtained without changing the orifice.

Name Value
BTU 700,000 - 1,500,000 Btu/hr.
Agency Approvals CSD-1
Air Tube Length(s) 6"
Air Tube Diameter(s) 5.75"
Combustion Head Nozzle mix, high retention
Controls Flamerod sensor with 4-second trial for ignition
Electrical (Voltage) 120V
Fan Housing Diecast aluminum alloy
Firing Range 700,000 - 1,500,000 Btu/hr.
Fuel Natural Gas or LP
Ignition Direct Spark 6,000 V ignition source
Maximum Air Tube Insertion 5"
Maximum BTU/Hr Input 0 Btu/hr
Minimum BTU/Hr Input 0 Btu/hr
Modulation Option Available No
Motor 0.5 HP, 3450 RPM, 115 / 208-230, 60HZ
Mounting Cast aluminum flange included
Gas Train 1.5" CSD-1 components
Overall Height 13.60"
Overall Width 24.33"
Overall Length 28.73"
Shipping Weight 57 lbs.
