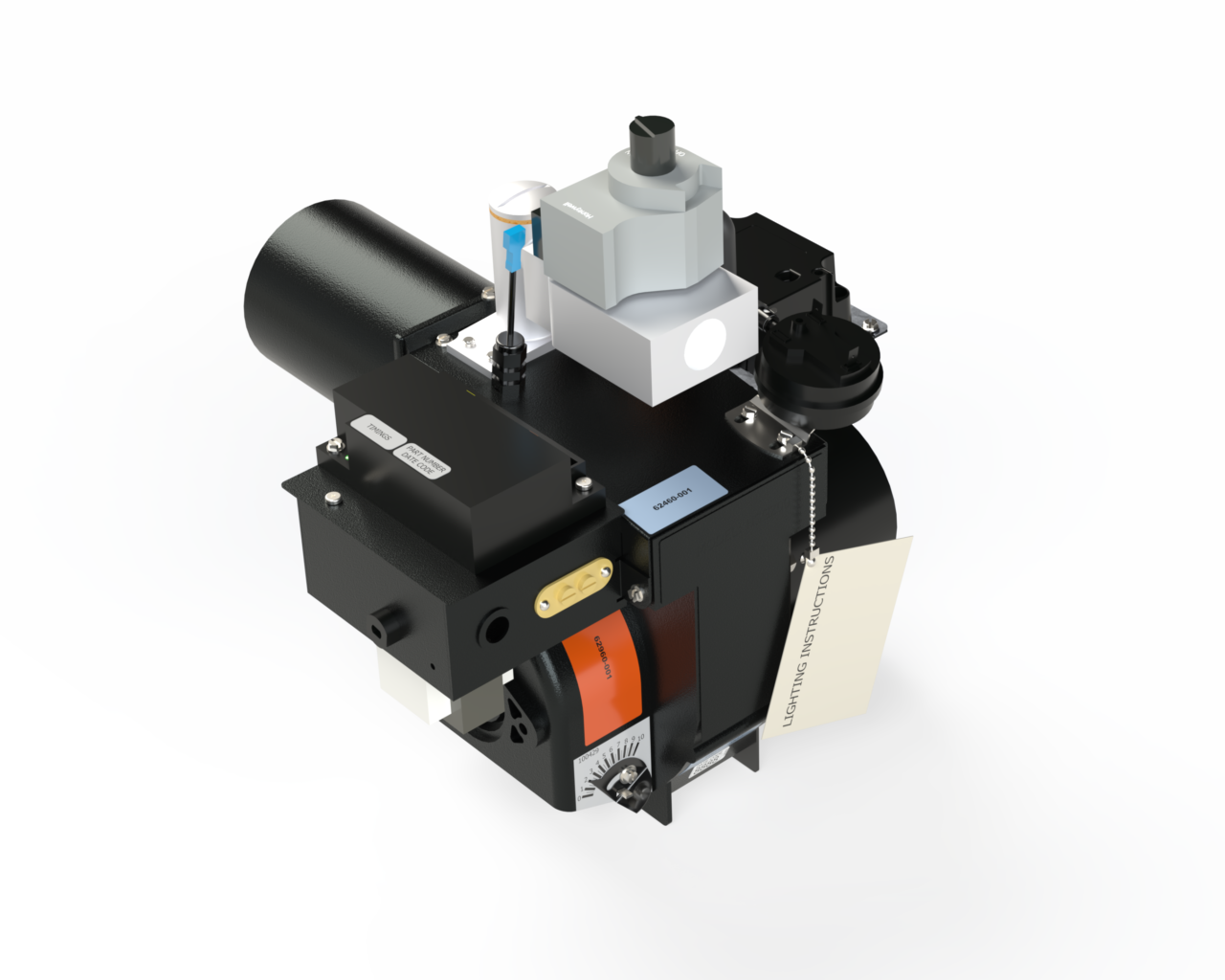

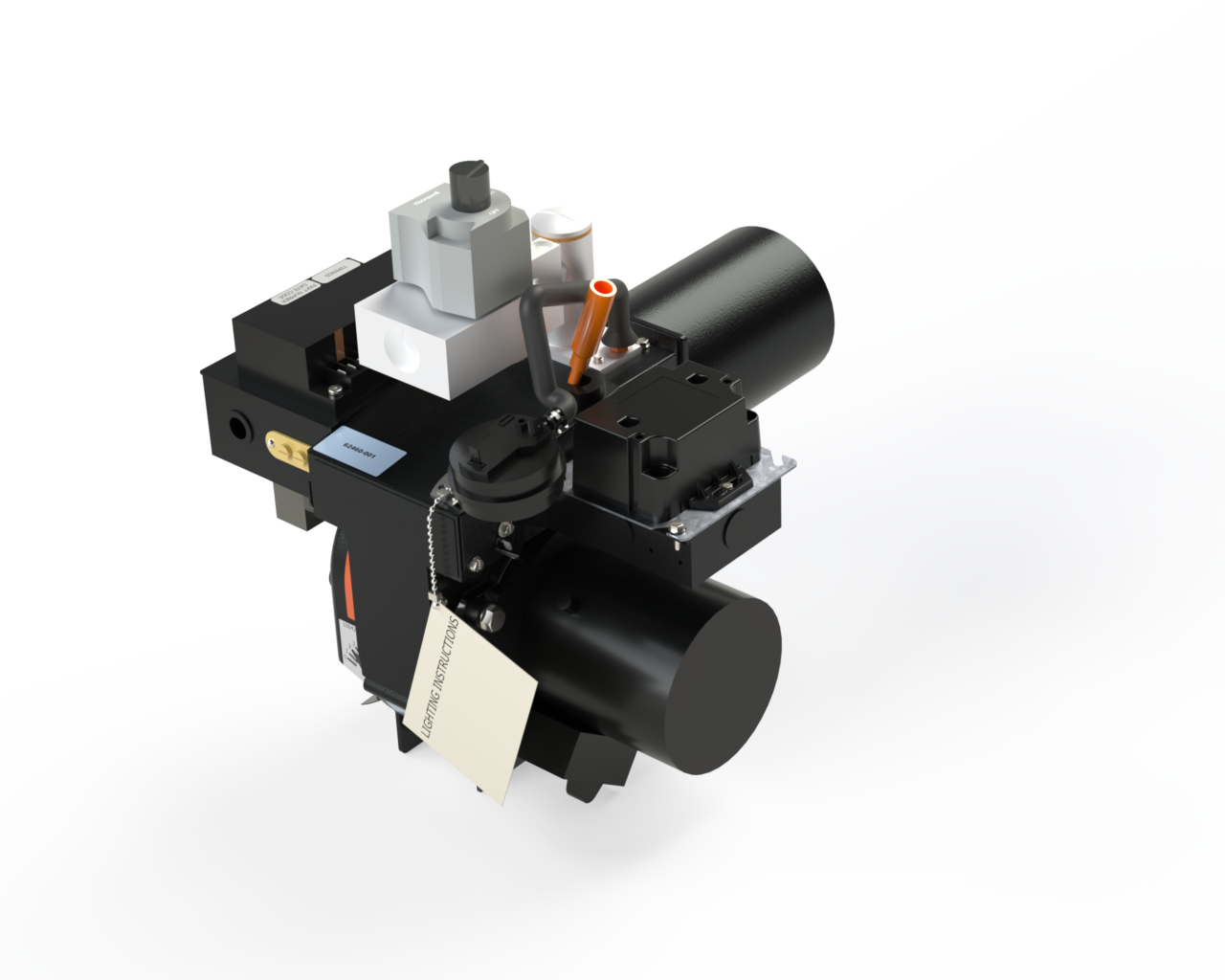

HSG200
60,000 - 200,000 Btu/hAn alternative to the P250AF, for higher static applications, the HSG200 “Blue Angel” has long been known as a workhorse in the industry.
Designed for easy installation, the burner is easy to set-up and has the ability to fire between the entire range. Identify and install the correct orifice, set the gas valve pressure and adjust the primary and off cycle dampers.
Quickly locate an authorized Wayne distributor near you.
The HSG200 “Blue Angel” has long been known as a workhorse in the industry.
With good combustion in poor draft situations, the HSG200 delivers the performance and reliability that’s become synonymous with the Wayne name.
Designed for easy installation, the burner is easy to set-up and has the ability to fire between the entire range. Identify and install the correct orifice, set the gas valve pressure and adjust the primary and off cycle dampers.
All HSG200 burners are factory set to fire natural gas, while the firing of LP is easily achieved with an orifice change in the field.
| Name | Value |
|---|---|
| BTU | 60,000 - 200,000 Btu/hr |
| Agency Approvals | CSA 189810-1154925, MEA 49-83-E, MASS G3-0616-554 |
| Air Tube Length(s) | 6", 8", 9", 12" |
| Air Tube Diameter(s) | 4" OD |
| Controls | 24V combination control, 3/4" IPS redundant valve. Flamerod sensor with 4 second safety delay. |
| Electrical (Voltage) | 120V, 220/240V |
| Electrical (Hertz) | 50 Hz, 60 Hz |
| Fan Housing | One-piece aluminum alloy diecast housing |
| Firing Range | 60,000 - 200,000 Btu/hr |
| Fuel | Natural Gas & LP |
| Ignition | Direct spark ignition 7,300 V ignition transformer. |
| Maximum Air Tube Insertion | 1" less than overall tube length |
| Maximum BTU/Hr Input | 0 Btu/hr |
| Minimum BTU/Hr Input | 0 Btu/hr |
| Modulation Option Available | No |
| Motor | 3450 RPM, 120V, 2.4 amps |
| Mounting | Adjustable flange and gasket included, pedestal mount available |
| Overall Height | 12.5" |
| Overall Width | 13.5" |
| Overall Length | 7.75" + tube length |
| Shipping Weight | 35 lbs. |
