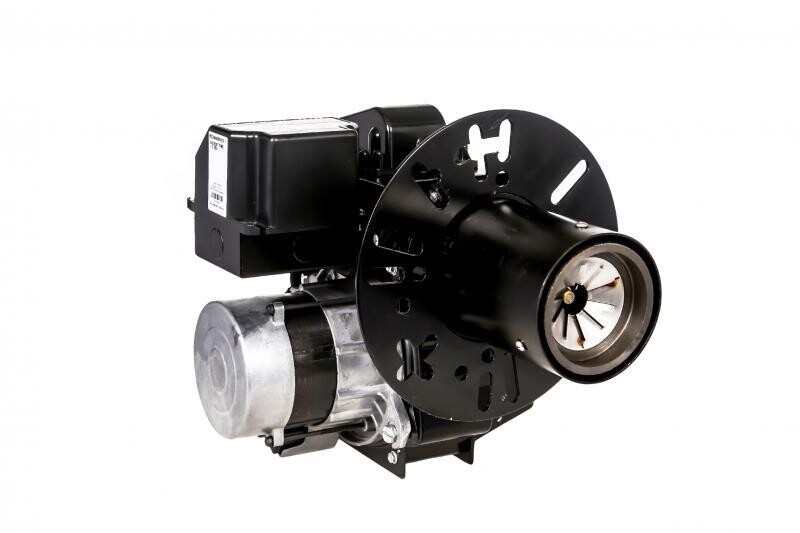

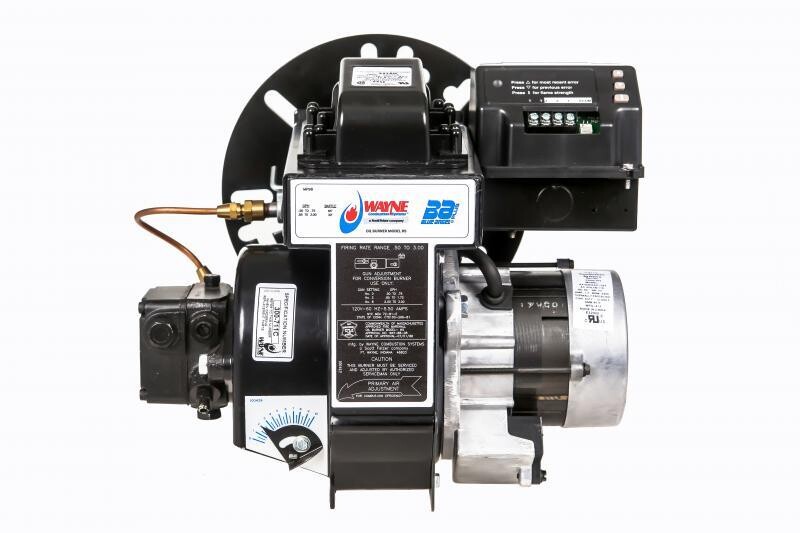

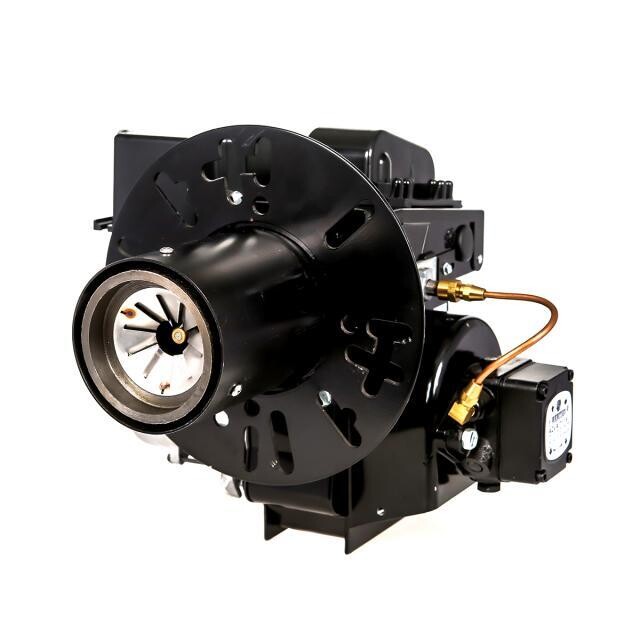

HS

.50 - 3.00 GPH

Wayne’s HS burner models provide superior reliability and ultra-high efficiency. Their exclusive flow design provides forced air delivery at twice the normal pressure for more efficient combustion, application versatility and improved venting in poor draft conditions.

It’s Flamelock® retention head makes achieving a precise flame size, shape and position possible for maximum efficiency.

Quickly locate an authorized Wayne distributor near you.

Wayne’s HS Blue Angel burner models provide superior reliability and ultra-high efficiency.  Their exclusive flow design provides forced air delivery at twice the normal pressure for more efficient combustion, application versatility and improved venting in poor draft conditions.

It’s Flamelock® retention head makes achieving a precise flame size, shape and position possible for maximum efficiency.

The HS burner has a wide firing range from 0.50 – 3.00 GPH and is easily serviced with off the shelf parts.

All Wayne HS burners are fired and tested prior to shipment.

Name Value
Agency Approvals UL MP98, ULC, CT, MEA 72-81-E, MASS WAY-88-08, ME
Air Cone Precision machined, cast iron construction.
Air Tube Length(s) 6", 9", 12", 15", 18"
Air Tube Diameter(s) 4" OD
Capacities 0.50 - 3.00 GPH
Controls Control Mounting and wired, Cadmium Sulfide cell included
Electrical (Voltage) 120V, 220/240V
Electrical (Hertz) 50 Hz, 60 Hz
Fan Housing One piece die cast aluminum alloy, assures positive alignment of all moving components for life of unit.
Fuel Oil
Fuel Pump 3450 RPM, single or two-stage, universally serviceable or replaceable.
Ignition 120V primary, solid state ignitor, 17,500 secondary voltage
Modulation Option Available No
Motor Split phase, 1/7 HP, 3450 RPM, 115V NEMA standard.
Mounting Adjustable flange (standard w/ fully assembled units) and/or optional pedestal
Nozzle Adaptor "No drop" adaptor insures immediate oil cutoff. Eliminates oil, soot or after-drip.
Overall Height 12.50"
Overall Width 12.875"
Overall Length 7.75" + tube length
Maximum Overall Length 25.75"
Shipping Weight 35 lbs. - 42 lbs. by spec
