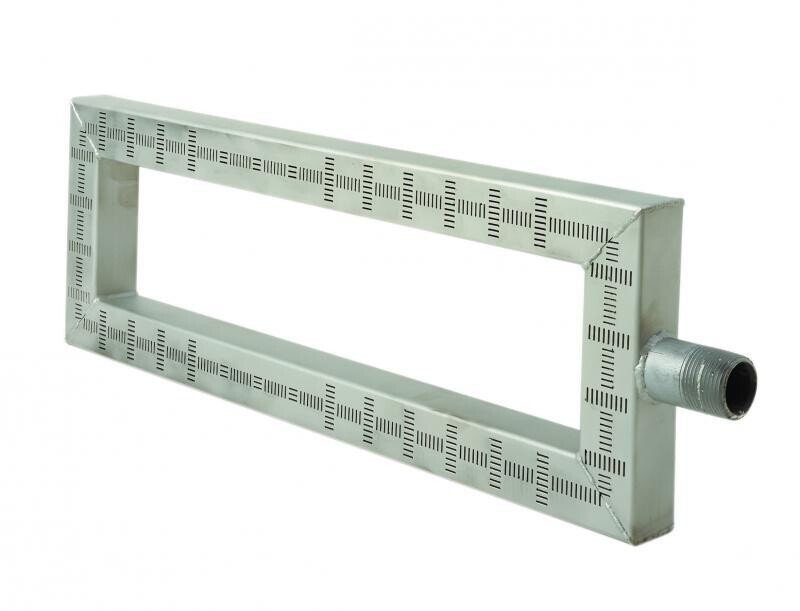

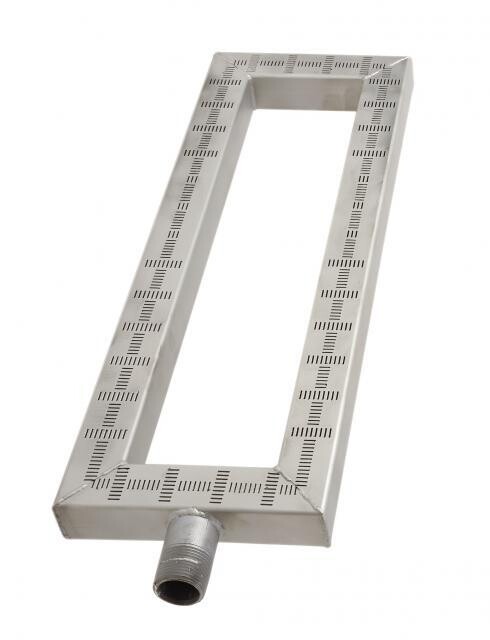

FLEX-Heat Burner
20,000 - 100,000 Btu/hThe FLEX-Heat burner system is a patented design built to provide the optimal heat pattern specific to each application.
Different from standard power burners, the FLEX-Heat burner allows for custom burner shapes, port patterns and full modulation.
Quickly locate an authorized Wayne distributor near you.
The FLEX-Heat burner system is a patented design built to provide the optimal heat pattern specific to each application.
Different from standard power burners, the FLEX-Heat burner allows for custom burner shapes, port patterns and full modulation.
Burners are constructed of stainless steels and operate on Natural or LP gas with direct spark ignition and flame sensing. All models are factory wired and test fired before shipment.
US Patent Numbers:Â 6,672,302 and 8,075,304
| Name | Value |
|---|---|
| BTU | 20,000 - 100,000 Btu/hr. standard, custom firing ranges available |
| Electrical (Voltage) | 120V, 220/240V |
| Electrical (Hertz) | 60 Hz |
| Firing Range | 20,000 - 100,000 Btu/hr. |
| Fuel | Natural Gas or LP |
| Ignition | Direct spark ignition 7,300 V ignition transformer. |
| Low Nox Capability | YES |
| Maximum BTU/Hr Input | 0 Btu/hr |
| Minimum BTU/Hr Input | 0 Btu/hr |
| Modulation Option Available | No |
