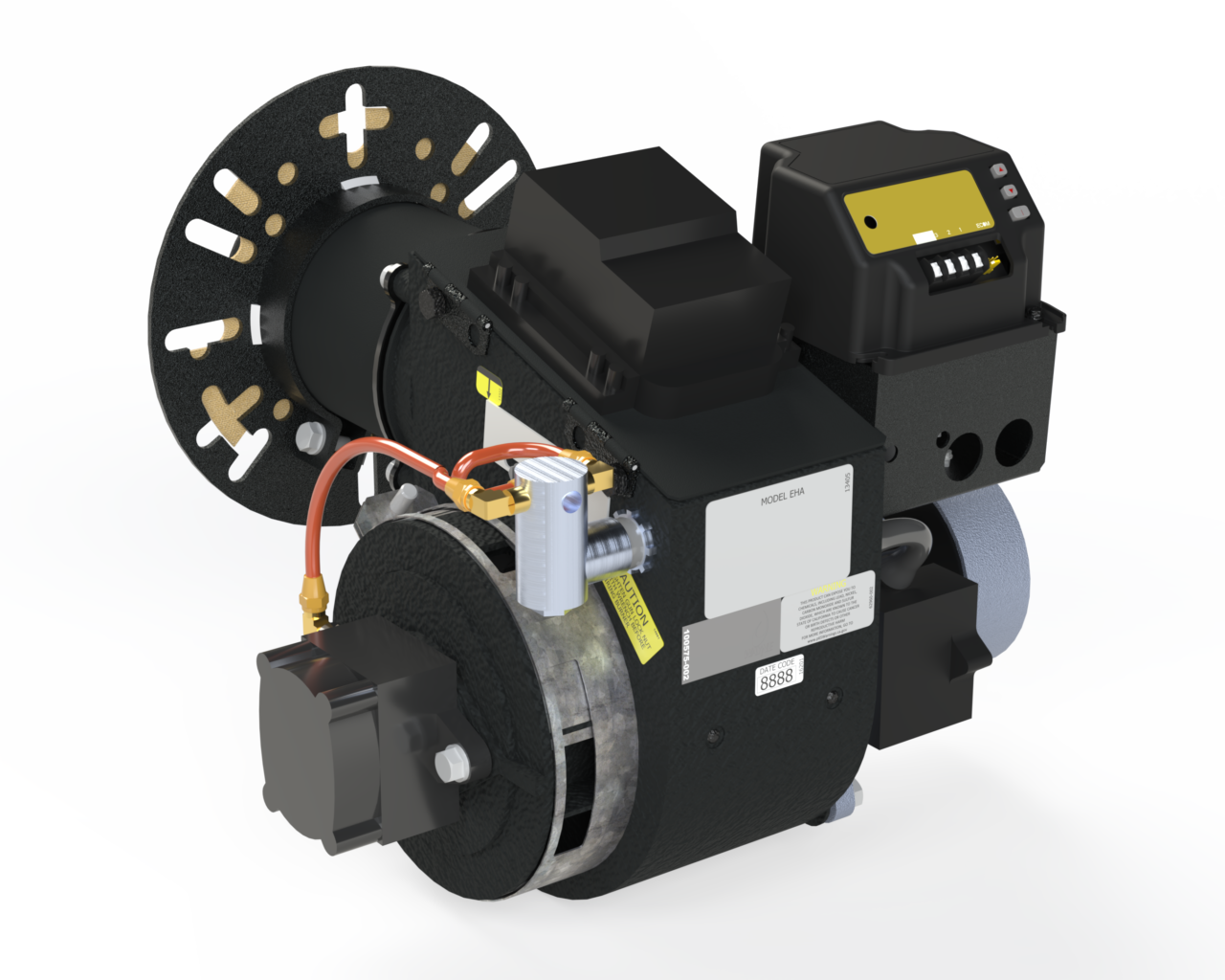

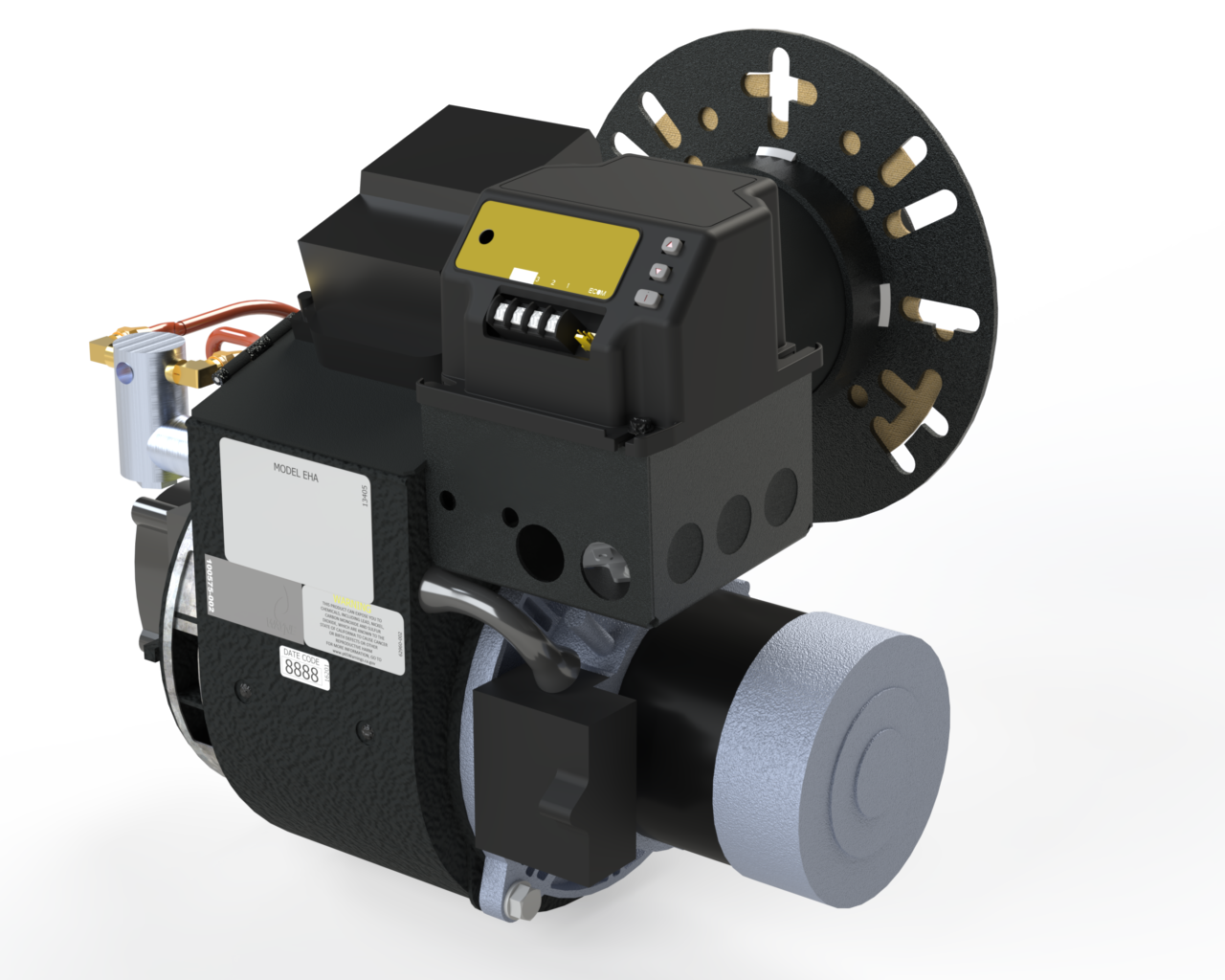

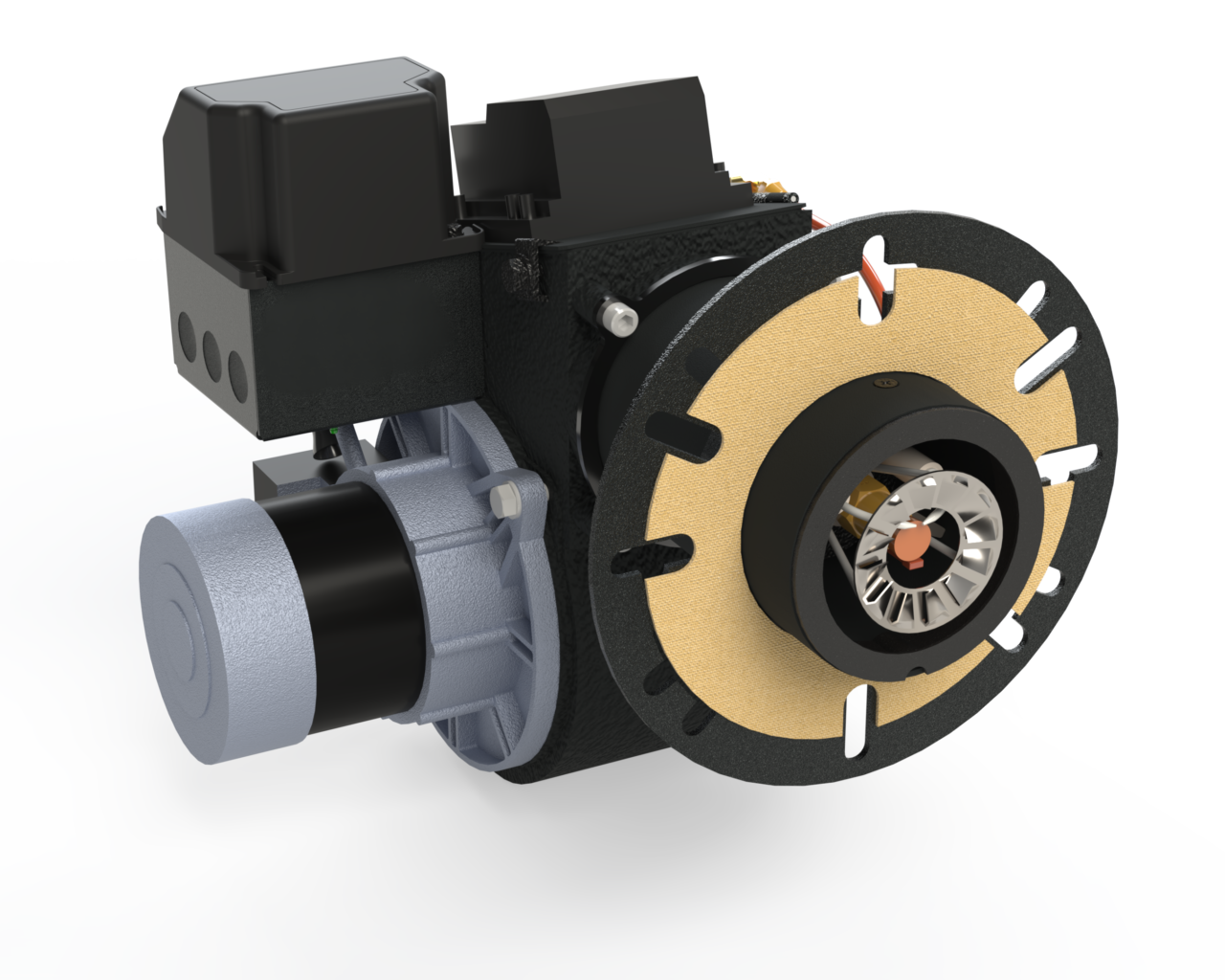

FH
4.00 - 13.00 GPHAs a large capacity burner, the FH burner is available from 4.00 GPH – 13.00 GPH and is suitable for burning No. 1 or No. 2 fuel oil.
Wayne’s FH burners come standard with Flamelock®, assuring positive flame stability, resulting in a clean and uniform high temperature flame.
Quickly locate an authorized Wayne distributor near you.
As a large capacity burner, the FH burner is available from 4.00 GPH – 13.00 GPH and is suitable for burning No. 1 or No. 2 fuel oil.
Wayne’s FH burners come standard with Flamelock®, assuring positive flame stability, resulting in a clean and uniform high temperature flame.
With a clean ignition and sharp, positive, no-drip shutoff reduces carbon soot formation.
The FH burner features:
- Lower emissions
- Improved efficiencies
- Pulsation free
- Positive retention
- Controlled flame pattern
- Quiet stops and starts
- Low nozzle temperatures
- High static pressure
| Name | Value |
|---|---|
| Agency Approvals | UL MP98, CT, MEA 32-81-E, MASS WAY 88-04, ME |
| Air Adjustment | Air adjusting bands interlock for positive air adjustment. |
| Air Cone | Heavy-duty cast iron, easily changed for different firing ranges. |
| Air Tube Length(s) | 10" or 15" on standard specs, shorter lengths available |
| Capacities | 4.00 - 13.00 GPH |
| Controls | Cadmium cell and relay installed |
| Electrical (Voltage) | 120V, 220/240V |
| Electrical (Hertz) | 50 Hz, 60 Hz |
| Fan Housing | One piece diecast. |
| Fuel | No. 1 or No. 2 fuel oil |
| Fuel Pump | 3450 RPM fuel pump, one or two-stage. |
| Ignition | Solid State |
| Modulation Option Available | No |
| Motor | 0.5 HP, 120V / 60 HZ |
| Mounting | Adjustable flange or optional pedestal mount |
| Nozzle Adaptor | Dual nozzle brass adaptor |
| Shipping Weight | 75 lbs. minimum |
