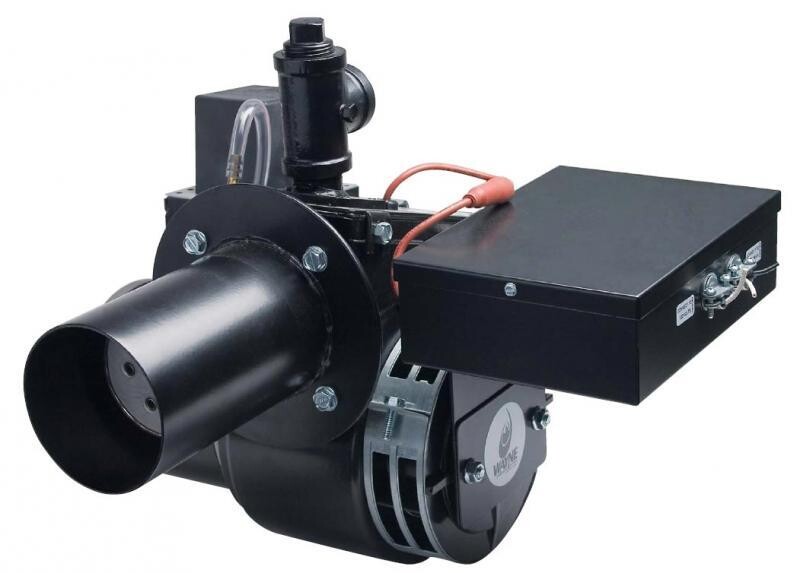

EHG
425,000 - 700,000 Btu/hThe Wayne Model EHG power gas burners are designed for performance and reliability, and offer features such as: higher static pressure than standard power gas burners, good combustion in poor draft situations, converts easily to fire LP or Natural Gas, flame retention head to allow flame shapes to fit various combustion chambers, partial premix head design to provide excellent combustion characteristics (8% to 10% CO2 on Natural Gas), industry proven controls and components
Quickly locate an authorized Wayne distributor near you.
The Wayne Model EHG power gas burners are designed for performance and reliability, and offer features such as:
- higher static pressure than standard power gas burners
- good combustion in poor draft situations
- converts easily to fire LP or Natural Gas
- flame retention head to allow flame shapes to fit various combustion chambers
- partial premix head design to provide excellent combustion characteristics (8% to 10% CO2 on Natural Gas)
- industry proven controls and components
| Name | Value |
|---|---|
| BTU | 425,000 - 700,000 Btu/hr. |
| Agency Approvals | CSA 189810-1345262, MEA 107-04E |
| Air Tube Length(s) | 6", 9", 12", 15" |
| Air Tube Diameter(s) | 4" OD |
| Capacities | Firing rates from 425M through 700M Btu/hr. |
| Combustion Head | Stainless steel, precision stamping. No change for entire firing range |
| Controls | Direct ignition, flamerod sensor with 4-second trial for ignition |
| Electrical (Voltage) | 120V |
| Fan Housing | One-piece aluminum alloy diecast housing |
| Firing Range | 425,000 - 700,000 Btu/hr. |
| Fuel | Natural Gas / LP |
| Ignition | Direct spark ignition, 10,000 V |
| Maximum Air Tube Insertion | 1" less than overall tube length |
| Maximum BTU/Hr Input | 700,000 Btu/hr |
| Minimum BTU/Hr Input | 425,000 Btu/hr |
| Modulation Option Available | No |
| Motor | 3450 RPM, 115 V, 60 HZ |
| Mounting | Standard with adjustable flange. Welded flange optional. |
| Gas Train | UL795 & CGA 3.4 compliant |
| Overall Height | 15.10" |
| Overall Width | 18.40" |
| Overall Length | 8.30" + tube length |
| Maximum Overall Length | 23.30" |
| Shipping Weight | 72 lbs. |
