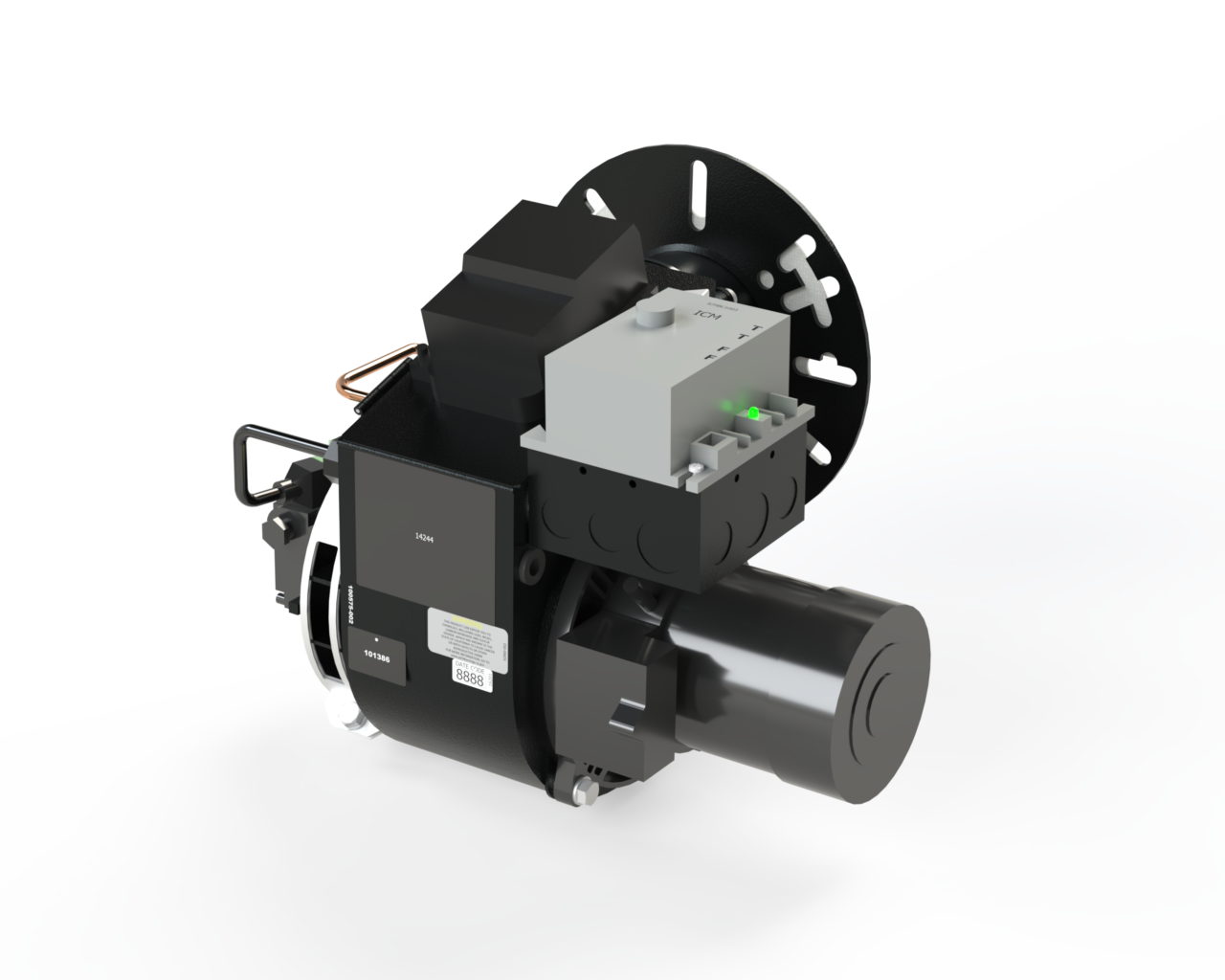

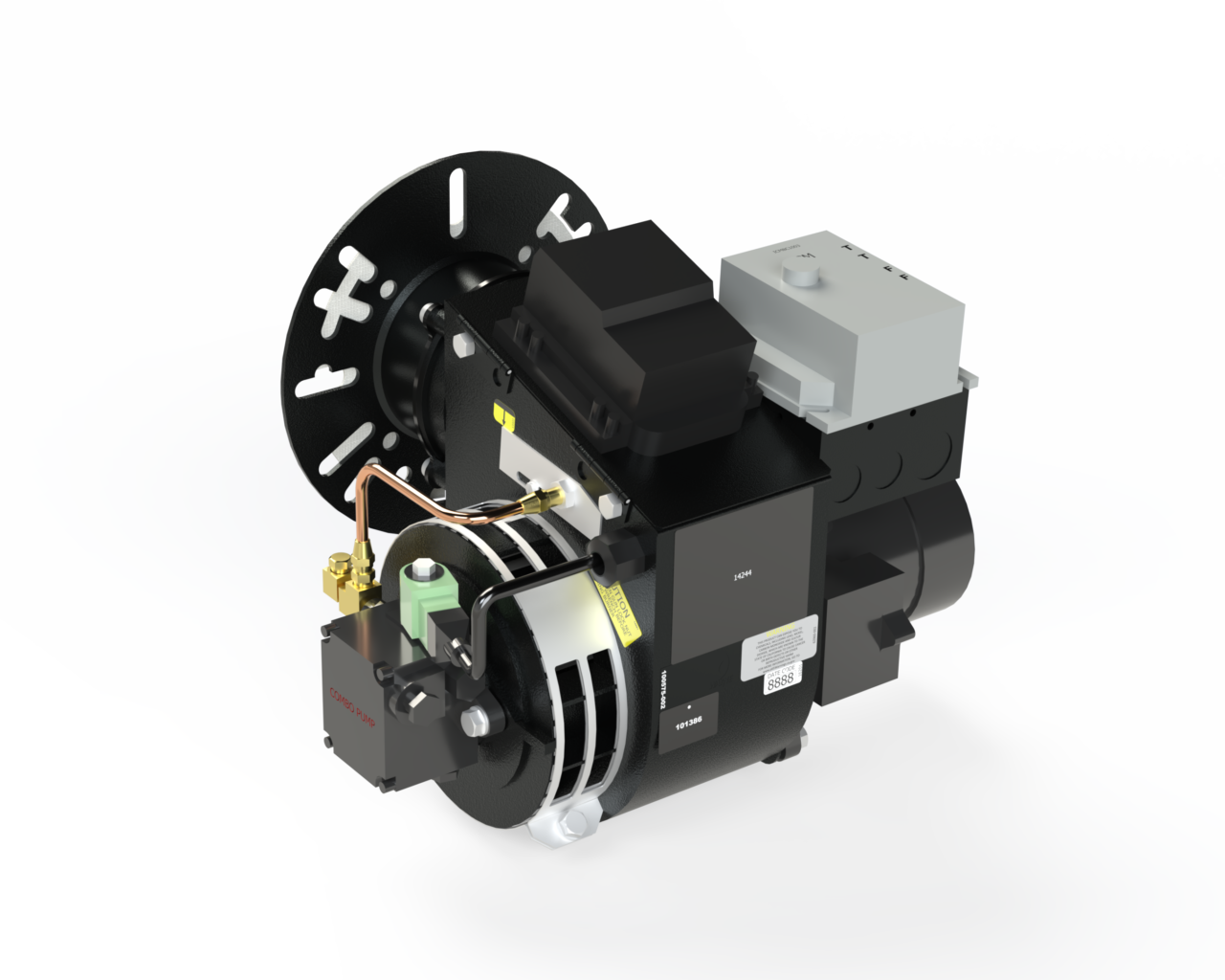

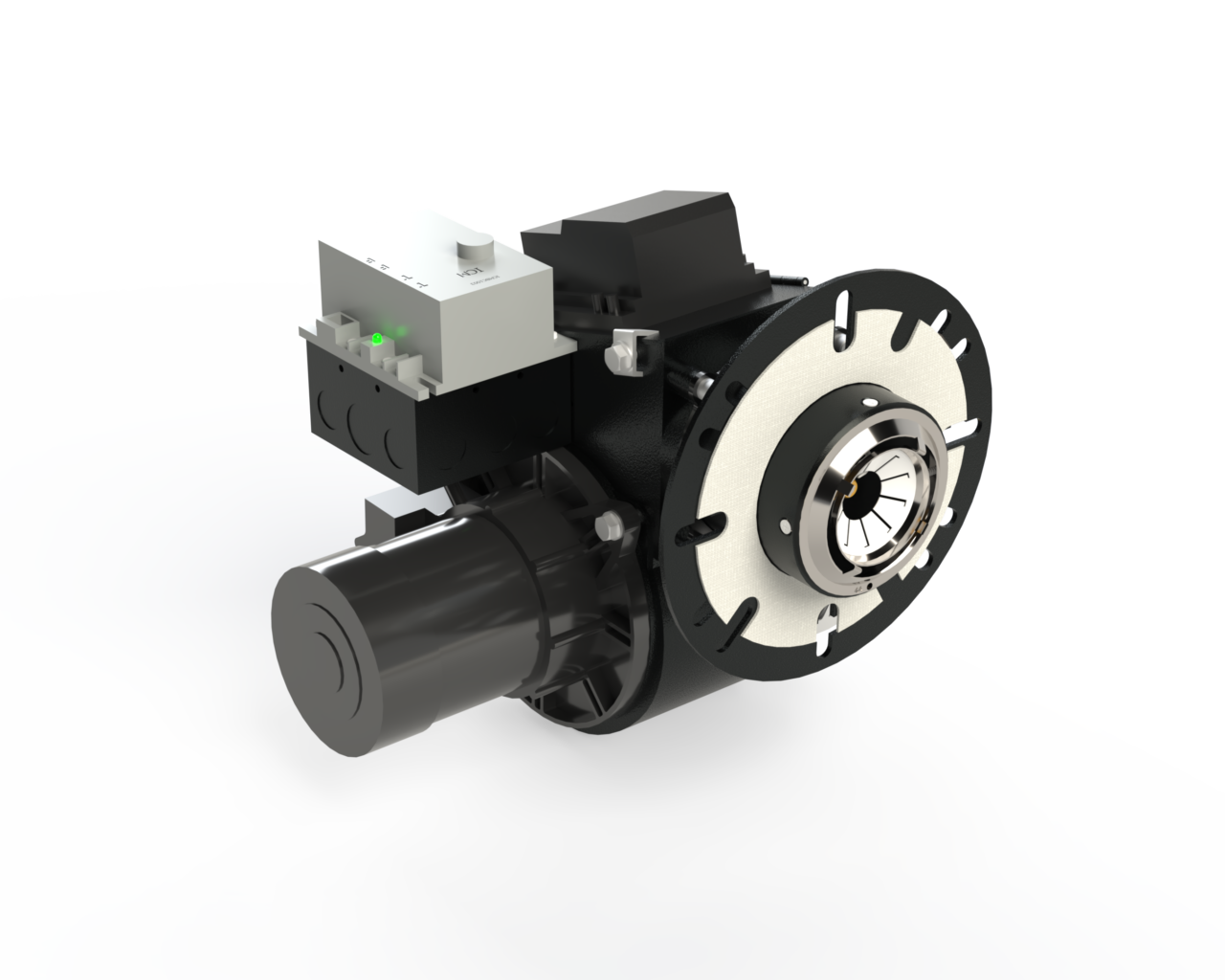

EHASR

.50 - 3.00 GPH

Wayne’s EHA burners come standard with Flamelock®, assuring positive flame stability, resulting in a clean and uniform high temperature flame.

With a clean ignition and sharp, positive, no-drip shutoff reduces carbon soot formation.

The EHASR burner features:

Lower emissions
Improved efficiencies
Pulsation free
Positive retention
Controlled flame pattern
Quiet stops and starts
Low nozzle temperatures
High static pressure

Quickly locate an authorized Wayne distributor near you.

Wayne’s EHA burners come standard with Flamelock®, assuring positive flame stability, resulting in a clean and uniform high temperature flame.

With a clean ignition and sharp, positive, no-drip shutoff reduces carbon soot formation.

The EHASR burner features:

Lower emissions
Improved efficiencies
Pulsation free
Positive retention
Controlled flame pattern
Quiet stops and starts
Low nozzle temperatures
High static pressure

Name	Value
Agency Approvals	UL MP98, CT, MEA 162-75-E, ME
Air Adjustment	Air adjusting bands interlock for positive air adjustment.
Air Cone	Heavy-duty cast iron, easily changed for different firing ranges.
Air Tube Length(s)	6", 9", 12", 15", 18"
Capacities	0.50 - 3.00 GPH
Controls	Standard - 15 second control with cadmium cell installed.
Electrical (Voltage)	120V, 220/240V
Electrical (Hertz)	50 Hz, 60 Hz
Fan Housing	One piece diecast
Fuel	No. 1 or No. 2 fuel oil
Fuel Pump	3450 RPM fuel pump, one or two-stage.
Ignition	10,000 V constant duty transformer. TV-Radio interference proof. Positive make or break contact with electrodes. Swing away design swings open for access to gun assembly.
Modulation Option Available	No
Motor	1/4 HP, NEMA Standard, split phase 3450 RPM, 115V / 60 HZ
Mounting	Adjustable flange or optional pedestal mount
Nozzle Adaptor	No drip brass adaptor insures sharp oil cutoff when fuel pump shuts off. Bleeds air from line, prevents after drip, eliminating smoke, soot and carbon formation.
Shipping Weight	42 lbs.
