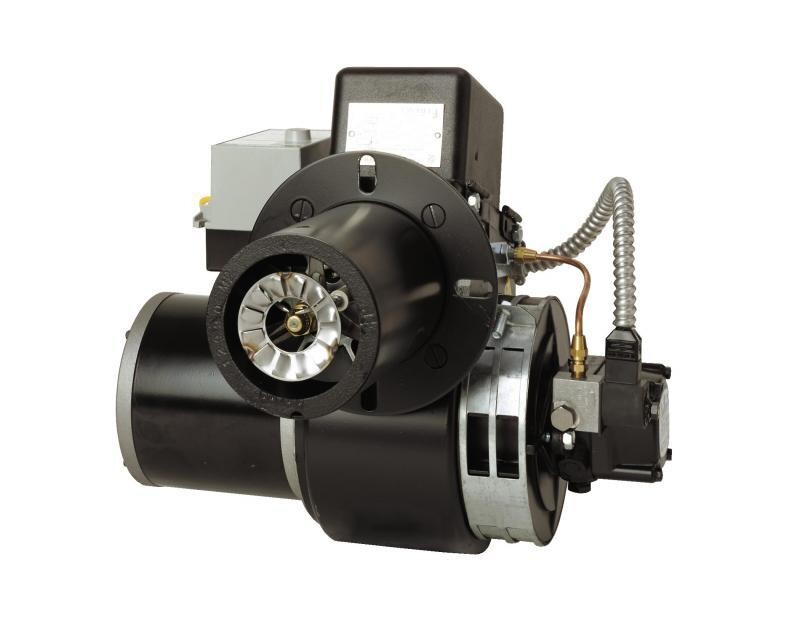

EH
3.00 - 6.00 GPHWayne’s EH burners come standard with Flamelock®, assuring positive flame stability, resulting in a clean and uniform high temperature flame.
With a clean ignition and sharp, positive, no-drip shutoff reduces carbon soot formation.
Quickly locate an authorized Wayne distributor near you.
Wayne’s EH burners come standard with Flamelock®, assuring positive flame stability, resulting in a clean and uniform high temperature flame.
With a clean ignition and sharp, positive, no-drip shutoff reduces carbon soot formation.
The EH burner features:
- Lower emissions
- Improved efficiencies
- Pulsation free
- Positive retention
- Controlled flame pattern
- Quiet stops and starts
- Low nozzle temperatures
- High static pressure
| Name | Value |
|---|---|
| Agency Approvals | UL MP98, CT, MEA 162-75-E, ME |
| Air Adjustment | Air adjusting bands interlock for positive air adjustment. |
| Air Cone | Heavy-duty cast iron, easily changed for different firing ranges. |
| Air Tube Length(s) | 6", 9", 12", 15", 18" |
| Capacities | 3.00 - 6.00 GPH |
| Controls | Standard - 15 second control with cadmium cell installed. |
| Electrical (Voltage) | 120V, 220/240V |
| Electrical (Hertz) | 50 Hz, 60 Hz |
| Fan Housing | One piece diecast |
| Fuel | No. 1 or No. 2 fuel oil |
| Fuel Pump | 3450 RPM fuel pump, one or two-stage. |
| Ignition | 10,000 V constant duty transformer. TV-Radio interference proof. Positive make or break contact with electrodes. Swing away design swings open for access to gun assembly. |
| Modulation Option Available | No |
| Motor | 1/4 HP, NEMA Standard, split phase 3450 RPM, 115V / 60 HZ |
| Mounting | Adjustable flange or optional pedestal mount |
| Nozzle Adaptor | No drip brass adaptor insures sharp oil cutoff when fuel pump shuts off. Bleeds air from line, prevents after drip, eliminating smoke, soot and carbon formation. |
| Shipping Weight | 44 lbs |
